TECSUN PL-680 is a PLL AM Dual Conversion radio receiver for listening to FM, Longwave (LW), AM / Medium Wave (MW), Shortwave (SW) and VHF Air Band, and it is Single Sideband (SSB) capable.
Package Contents
- PL-680 radio
- AC/DC power adapter
- Leatherette case
- Stereo earphones
- Tecsun AN-06 SW wire antenna
- 4 x Ni-MH rechargeable AA-size batteries
- English manual
Special Functions
- AM dual conversion
- Single Side Band (SSB) with BFO control
- Synchronous Detector: Upper Side Band (USB) and Lower Side Band (LSB)
- AM Bandwidth selection (wide / narrow)
- Air Band (VHF): For intercepting radio communication in aviation – e.g. commercial and general aviation, radio navigational aids, air traffic control. By using your PL-660s air band function, you may intercept communication between pilots and the air traffic control, but also other communication from commercial and general aviation, radio navigational aids and air traffic control.
- Auto-sorting memory: sorting stored stations automatically according to meter band and frequency, removes duplicate stations.

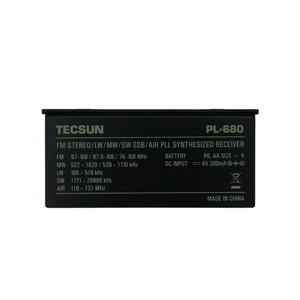

Frequency Range
- FM: 76 – 108 MHz
- 76 – 108 MHz
- 87.5 – 108 MHz
- LW: 100 kHz to 519 kHz (tuning step 1 kHz or 9 kHz)
- MW: 520 - 1710 kHz
- 522 - 1620 kHz (band step 9 kHz)
- 520 - 1710 kHz (band step 10 kHz)
- SW: 1711 kHz to 29999 kHz (tuning step 1 kHz or 5 kHz)
- AIR: 118 - 137 MHz (tuning step 1 kHz or 25 kHz)
Tuning Methods
- Auto-scan tuning
- Jog dial manual tuning
- Direct keypad entry of a frequency
Storing Stations Methods
- Manually: tune into a station manually and store them
- Semi-auto storage: storing stations during auto-scan
- Auto Tuning Storage (ATS): automatically tune into and store stations
Basic Features
- Signal strength and S/N ratio display
- 2000 stations storage locations, divided over 13 memory pages
- Multispeed tuning knob
- Alarm by radio (2 preset alarms possible)
- Alarm Off Timer (1 - 90 minutes)
- Sleep timer (1 - 120 minutes)
- Snooze function – 5 minutes, repeated three times
- Sleep timer from 1 - 120 minutes
- Extra-long telescopic antenna
- Tone control switch (treble / bass)
- LCD Backlight function (5 or 30 seconds)
- Keylock function
- Flip-stand at the back of the device
- Local / Norm / DX antenna gain switch: adjust sensitivity when using external SW antenna
- SW (& FM) antenna jack (Φ3.5mm)
- Stereo headphone jack (32Ω, Φ3.5 mm)
- Built-in speaker (Φ77 mm / 16Ω / 1W)
- DC jack (6V)
- Built-in charging system for Ni-MH rechargeable batteries
Power / Charging
- Battery power: 4 x AA-size batteries
- DC power: 6V
- Charging/Power: DC 6V/300mA
Unit Size
- 188 x 116 x 31 mm (W x H x D)
Specifications
- Sensitivity
- FM (S / N = 30dB) < 3μV
- MW (S / N = 26dB) < 1mV/m
- LW (S / N = 26dB) < 5mV/m
- SW (S / N = 26dB) < 20μV
- SSB (S / N = 10dB) < 1μV
- AIR (S / N = 10dB) < 5μV
- Selectivity:
- FM > 30dB (± 200kHz)
- MW / LW > 40dB (± 9kHz)
- SW > 40dB (± 5kHz)
- S/N Ratio:
- FM > 60dB
- MW / LW > 45dB
- SW > 50dB
Product Code: 01-122Te00
Brand: Tecsun
Product Condition: New
weight: 1260.0g
